Temporary Corral Panel Barriers for Farm Games, Cattle Yards, and Horse Yards

Frishine supplies high quality temporary barriers suitable for a wide range of agricultural applications, including farm games, cattle yards, and horse yards. Temporary portable barriers for cattle, horse, goats and other livestock are designed for versatility and easy mobility. These corral panel barriers can be quickly erected to form secure enclosures and easy to remove. The customized sizes and materials are supplied to meet the unique needs of different farms.

Cattle Yard Panel Sizes and Customized Service

Cattle yard panels are used for construction of secured spaces for livestock, with various sizes, material durability, ease of assembly, and flexibility.

• Corral Panels for Horses and Cattle:
  Our standard corral panels are designed for horses and cattles, featuring security and comfort for the animals. The panel is produced with a height of 1.8 meters, length extending to 2.1 meters, ensuring ample space within each enclosure. Typical constructed with six bars of galvanized square rails 4cm x 4cm,  with pins and footplates for quick installation and stable positioning.
• Galvanized Cattle Panels with Vinyl Finish:
  This type of cattle panel is 16 feet in length and 50 inches in height, hot-dip galvanized for superior rust resistance. To further enhance durability and aesthetics, each panel is coated with a black vinyl finish.
• Customizable Dimensions for Diverse Applications:
  We offer customizable dimensions for cattle yard panels. Heights range from 42 to 54 inches for various breeds and sizes of livestock, various width and flexible length from 6 to 16 feet  to meet specific needs. Wires can be 4 to 8 gauge for the required durability and strength.

Modular Corral Panel

• Material: High-quality tubular steel
• Finish: Silver galvanized
• Dimensions:
  Height: Standard height 1.5 meters
  Length: Standard length, 2.4 meters
  Tube Thickness: Specific thickness, 1.6 mm
  Tube Diameter: Standard diameter, 32 mm
• Rails: Two horizontal rails for sturdy containment
• Vertical Bar Spacing: Spacing distance, 200 mm to ensure visibility and prevent cattle from sticking their heads out
• Corners: Rounded at the top for cattle safety and injury prevention
• Connection: Panels are connectable via drop pins or similar fastening mechanisms for secure attachment
• Construction: Quick and easy assembly and disassembly
• Portability: Lightweight design for easy transport and installation
• Locking System: Simple locking system (drop pins)
• Application: Ideal for creating temporary or semi-permanent enclosures for cattle in fields and on farms.
• Additional Options:
  Customizable dimensions for specific livestock sizes and enclosure areas
  Optional gate panels for entry and exit
  Safety Compliance: Meets industry safety standards for livestock containment

The cattle yard panel shown above is part of a modular livestock containment system suitable for farms and pastures.

Features:
1, Constructed from tubular steel with a silver galvanized finish, the corral panel offers both durability and corrosion resistance.
2, With vertical steel bars and two horizontal rails, the panel provides a strong visible animal enclosure.
3, Its design of safety-rounded corners minimizes the risk of cattle injury.
4, Quick assembly and disassembly system flexible for various enclosure and livestock sizes.

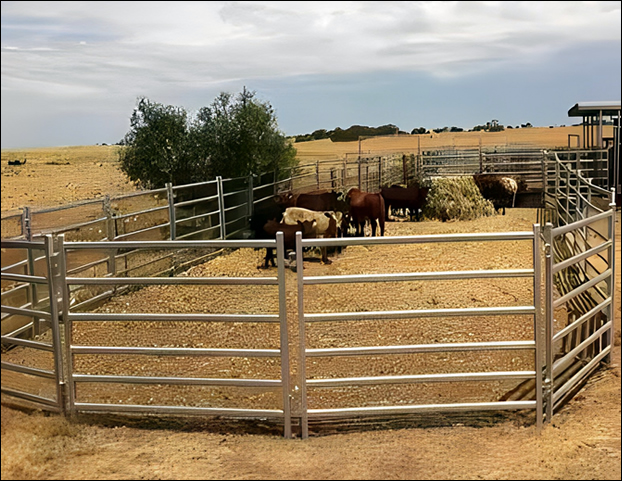

6-Bar Cattle Yard Panels with Gates

6-bar cattle yard panels, 1.8 x 2.1 meters, are efficient livestock enclosures. Made from sturdy steel bars with a galvanized finish, the panels are rust resisting and corrosion resisting. The horizontal bars are evenly spaced, offering visibility and strong containment to prevent cattle escape. Mounted on robust posts and connected by secure fastening systems, the panels allow for swift assembly and disassembly. The bottom bar close to the ground deters smaller animals from going underneath, and the top bar is placed to deter cattle from jumping over. This versatile system can create safe grazing areas, as well as spaces for veterinary and cattle sorting.

• Height and Length: Standard 6-bar cattle yard panels  are 1.8 meter high, to contain cattle or horses. The length commonly measures 2.1 meters, providing ample space between posts to ensure stability and security.
• Bar Spacing: Bar spacing is designed to prevent cattle from getting their heads stuck, usual gap between the bars is approximately 200-300mm.
• Tube Dimensions: The steel tubes have a diameter of 32-42mm with a thickness ranging from 1.6mm to 2.0mm.
• Adjustable Sizes: 6-bar cattle yard panels have a custom length range from 2.0 to 3.0 meters, while heights from 1.5 to 2.0 meters as needed.
• Bar Diameter and Thickness: Diameter of the tubes can be increased for heavier-duty applications, and the thickness can be adjusted.
• Gate: Panels can be customized to include built-in gates, for the passage of livestock or vehicles. Gate dimensions range from 1.0 to 1.5 meters in width.

6-bar corral panels are popular heavy enclosures for farming needs.

Frishine supplies 6 bar, 5 bar, 4 bar and other corral panel types to meet the requirements of modern agriculture.
