Frishine supplies high quality temporary fencing materials for customers across North America, mainly Chain Link Fencing, Canadian and USA style temporary fencing, and security fencing.
Our temporary fences exported to Canada are manufactured in accordance with general guidelines for safety and stability. Listed below is an overview of the typical standards applied to our temporary fence panels for Canadan market:
- Height and Width: Height of about 6 feet (1.8 meters) and panel width commonly 10 feet (3 meters).
- Material: Steel fencing panels often galvanized or powder coated for rust and corrosion resistance.
- Mesh Grid: Small mesh sizes anti climbing grid.
- Base/Feet: Stable and sturdy base typically made of heavy-duty plastic or rubber and can be filled with water or sand for additional stability.
- Wind Load: In areas susceptible to high winds, temporary fencing is designed to withstand specific wind speeds by using additional supports or anchors.
- Safety Regulations: Temporary fences should have no sharp edges or protrusions that could cause injury. All components must be securely fastened to prevent accidental removal or collapse.
- Visibility: High-visibility colors or markings are often required to ensure the fence is easily seen, particularly if used around construction sites or roadworks.

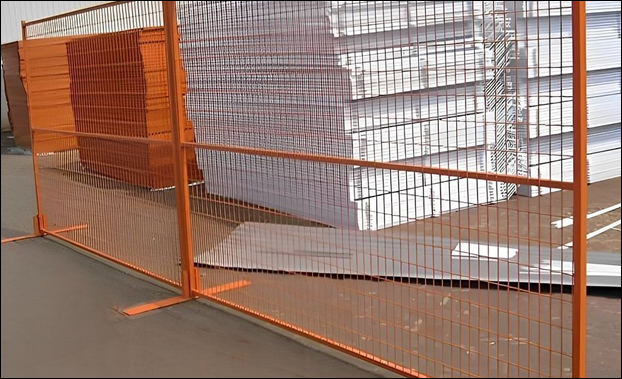

Powder Coated Steel Mesh Fencing Panels
Powder Coated 25mm x 25mm 8FT x 10FT Canadian Temporary Fencing, constructed from durable low carbon steel wire and square tubing, supplied in adjustable widths of 8-10ft and heights of 4-6ft. The mesh openings range from 50X100mm (2X4), 60X120mm, to 100X300mm, with a wire diameter of 3-5mm. Enhanced stability by an outer frame of 25X25mm and 30X30mm, a center pole of 20X20mm and 25X25mm, and a base block size of 89X863mmX7mm in thickness.

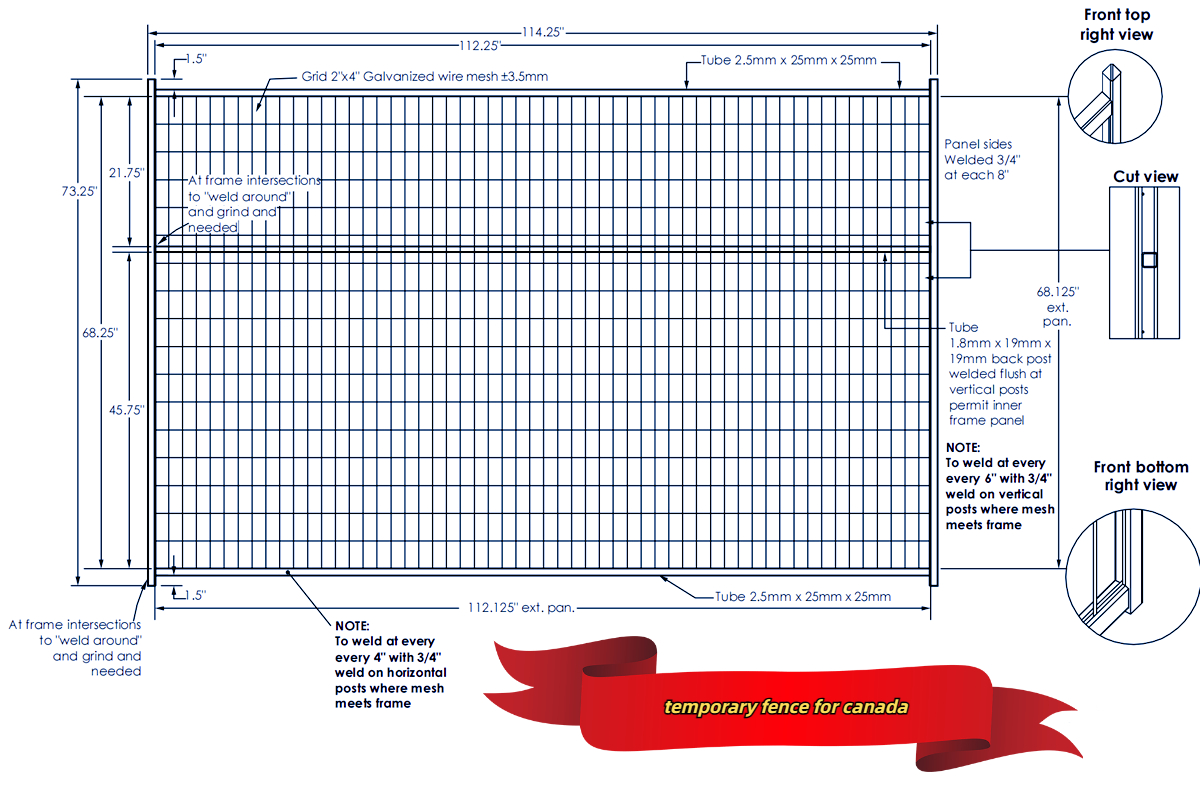

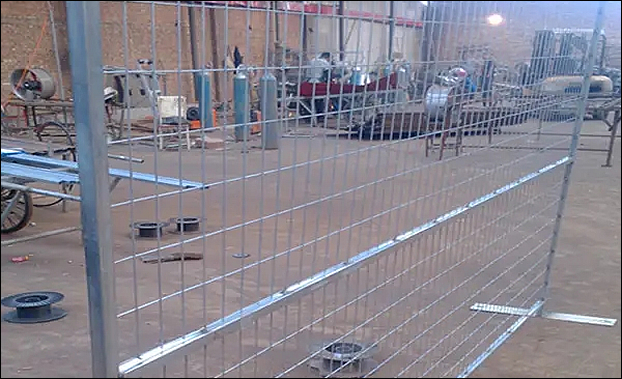

Galvanized Temporary Fence Panel 6’x10′
Temporary Fence Panel 6’x 10′ for construction sites and event perimeters.
Specifications Details
- Grid: The fence panel 2″x4″ galvanized wire mesh, wire thickness 3.5mm.
- Frame Tube: The main frame tube dimensions are 2.5mm in thickness, with a square profile of 25mm x 25mm.
- Back Post Tube: Supporting the structure is a back post tube, measured at 1.8mm thickness and a square profile of 19mm x 19mm. These tubes are welded flush at vertical posts to permit an inner frame panel that aligns perfectly with the overall structure.
- Panel Sides: The sides of the panel are secured with Welds measuring 3/4″ at every 8″, ensuring a strong bond between the mesh and the frame.
Welding Notes
Welding at every 4″ with a 3/4″ weld on horizontal posts where the mesh meets the frame.
Features
- The all-galvanized construction of the Temporary Fence Panel 6’X10′ , combined with the robust frame and back post design, makes the panel an ideal solution for temporary fencing needs, offering both security and durability.
- This Temporary Fence Panel is versatile, suitable for a wide range of applications including construction sites, event boundaries, and temporary perimeter control.
- Attached design drawing
Common Specifications for Export
As a specialized fencing manufacturer and exporter, we export to North America with the specifications listed below.
Type-I Temporary Fencing Panels for Canada
- Specifications Detail:
Construction: Square tubing dimensions at 1.2 x 1.2 inches (25 x 25 mm)
Material: Galvanized steel coated wire, 3.9 mm thick (9 gauge)
Mesh Dimensions: 2 x 3.5 inches wire mesh
Base Support: 7 mm thick steel
Coating: Galvanized and PVC coated for enhanced corrosion resistance - Accessory Options:
Entry Solution: Gate measuring 6 feet in height and 9 feet 6 inches in length, with a 7 by 4 feet door
Mobility: Wheel system featuring rubber wheels for easy movement
Security: Clamps specifically designed for square tubing to enhance safety
Customization: Availability of tailored accessories to meet specific needs - Size Options:
Standard Dimensions: 6 feet high x 9 feet 6 inches long, 6 feet high x 8 feet long, 4 feet high x 9 feet 6 inches long, 8 feet high x 9 feet 6 inches long, and 4 feet high x 4 feet long
Options for custom sizes in both panel and mesh dimensions - Color Selections:
Standard Colors: Black, Red, Orange, Yellow, Silver (Exclusive to Galvanized Finish)，
Optional colors tailored to specific preferences
Type-II Temporary Fence Specifications for Canada
Specifications:
- Height: 91 to 109 cm.
- Length: Available from 183 to 244 cm
- Foot Design: Each unit comes with a flat foot, ensuring stability and easy installation across different terrains.
- Finish: All our temporary fence panels are galvanized, offering superior resistance to rust and corrosion.
- Width: Our panels are designed with a standard width of 10 feet.
- Height Options: Available in heights of 6 to 8 feet, these fences cater to various security and boundary needs.
- Outside Diameter: The tubes have an outside diameter ranging from 32 to 42 mm.
- Gauge Thickness: Gauge thickness of 16.
- Accessories: Each panel is equipped with feet and clamps, facilitating easy and secure assembly.
Type III Temporary Fence Panels for Edmonton, AB, Canada.
6 feet high and 9 feet 6 inches long, painted in orange red, and include sturdy feet and a top pin for easy, secure installation. Attached are detailed drawings of the design and dimensions.
6’H x 9’6″L temporary fence panels with the feet and top pin included.

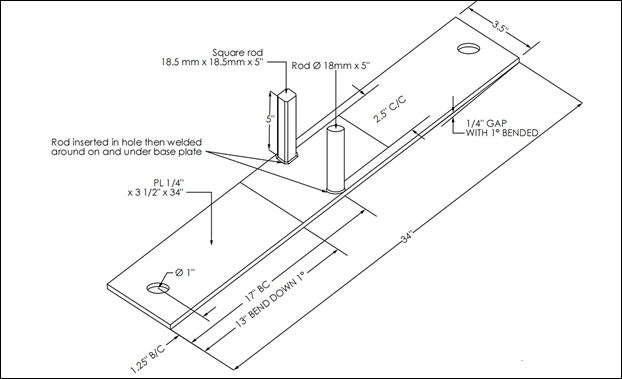

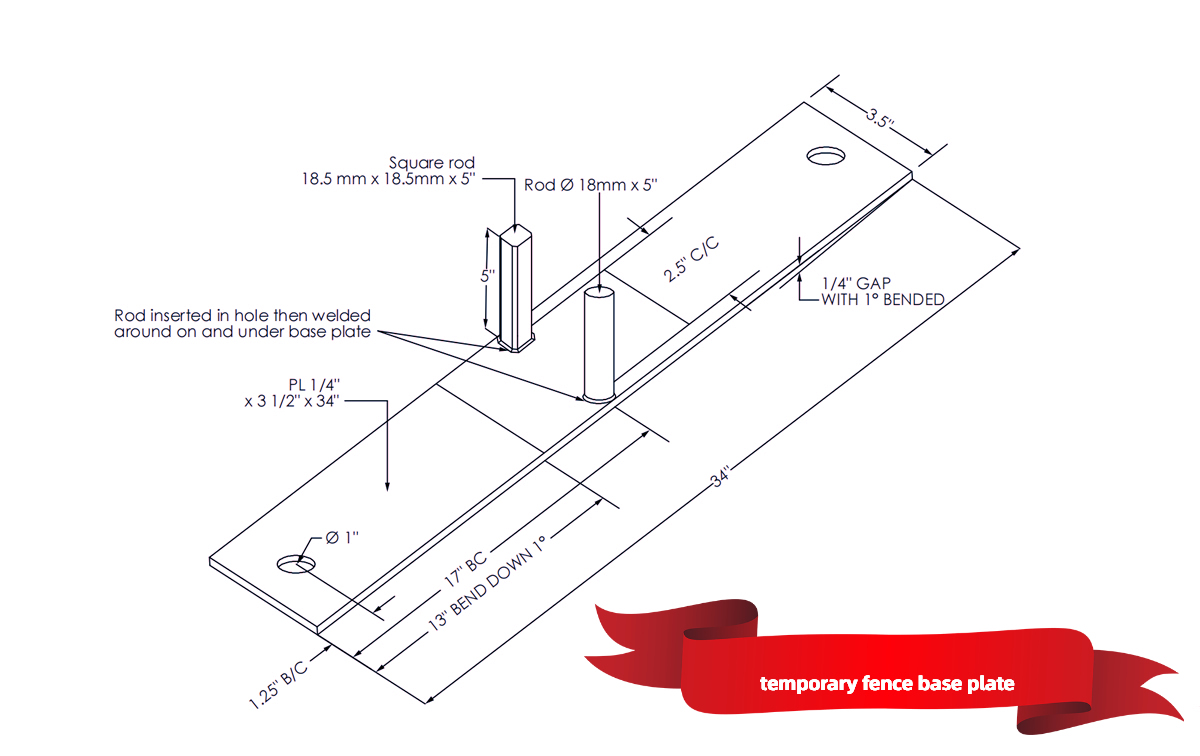

Temporary Fence Base Plate
A rod is inserted into a hole, then welded around the top and bottom of the base plate. The square rod measures 18.5 mm x 18.5 mm x 5″. There is a 1/4″ gap with a 1° bend. The rod has a diameter of 18 mm and a length of 5″. Hot dip galvanization is applied after welding.

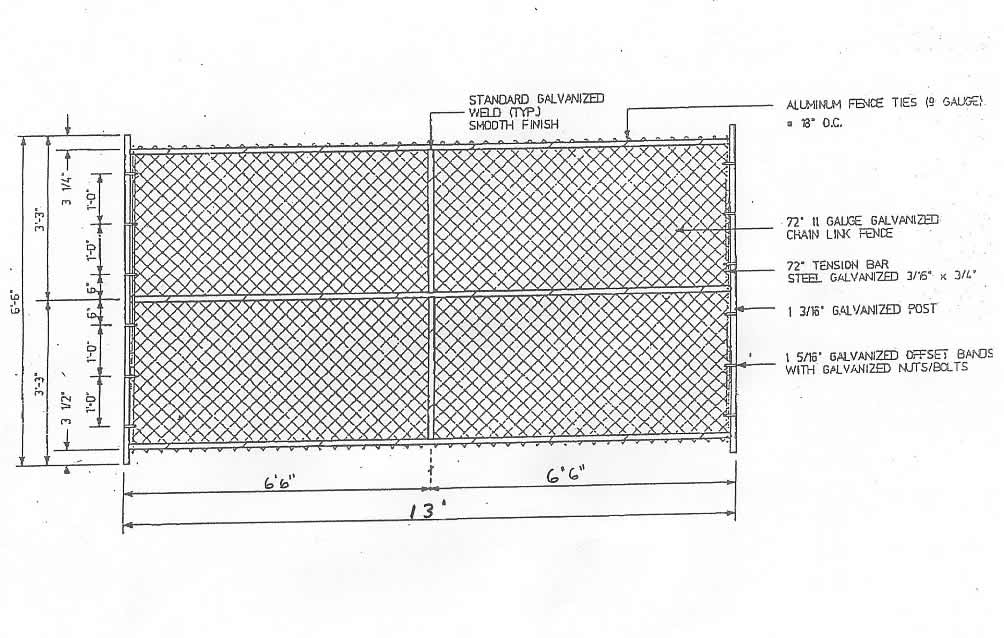

Type-IV Temporary Fence Panels for Canada
We supply standard galvanized chain link temporary fence panels. A file with details on the panels is attached.
Chain link style fencing is ideal for construction sites, swimming pools, sporting events, special events, parades, and council work sites for temporary security barriers.
Color and Finish: Available in yellow, grass green, dark green, and grey coated. The electro-galvanized and PVC spray finish ensures enhanced corrosion resistance and long service life.
Manufacturing Process
The manufacturing process for our temporary fencing involving several key steps: straightening and cutting the wire, welding the panel, cutting and welding the frame tube and center bar, and finally, powder coating the assembled fence before shipment.
Frishine Temp Fences are reliable, effective, and visually appealing for construction, event management, or perimeter security enhancements.
