Frishine supplies high quality Gabion Baskets made from durable galvanized steel mesh designed to hold rock or other filler materials. Wire mesh gabions thus filled form sturdy gabion walls used as retaining barriers against erosion and flood, safety barrier or noise-reducing partitions. Geotextile liner can be used depending on specific application.
Collapsable Mesh Gabion Baskets and Modular Design
Collapsible gabions can be flat-packed for easy transport and store. These gabion baskets can be quickly deployed and assembled on-site without specialized tools or extensive labor.
Material: Made from galvanized wire mesh, the Portable Gabion Baskets have great corrosion and rust resistance and a long service life under adverse environmental conditions. Gabions may also be coated with PVC to further enhance the durability in moisture or corrosive conditions.
Applications-Gabion wall fence – sound barrier, water and flood barrier, corrosion resistance barrier, military barrier
Gabion barriers are stronger than other forms of mesh fences, mainly used in:
Soil retaining flood control: Wire mesh gabions are widely used in soil stabilization, slope protection, and river training. They help prevent erosion by stabilizing banks and providing a barrier against water flow.
Military defense: Gabions serve as blast walls or protective barriers against explosions and small arms fire.
Safety barrier: protective all made of gabion baskets.
Noise barrier: Noise reducing wall in various sites.
Modular Gabion Barrier
Gabion barriers can be made of gabion boxes / baskets of different international standards.
Our welded wire mesh gabions are supplied with standard no. EN 10223-8 “Steel wire and wire products for fencing and netting – Part 8: Welded mesh gabion products”.

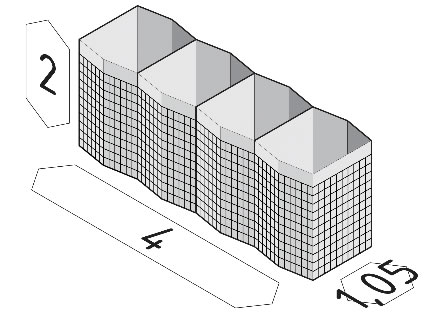

Project: Wire Mesh Gabion Barrier consisting of 4 connected gabion cells:
Modular Gabion Basket Barrier 2 m x 1 m x 1 m
Gabion cells:
Specifications:
Modular structure
Finish: Galvanized and Powder Coated
Color: Dark
Approximate section size (H x L x W): 2 m x 1 m x 1 m
Spiral hinged corners for flat packing
Frame material: Galvanized wire
Wire diameter: 4-5 mm
Mesh opening: 10 × 10 cm
Geotextile liner: 2 mm heavy-duty non-woven polypropylene
Approximate overall size (H x L x W): 2 m × 4 m × 1 m
Modular Gabion Basket Barrier 1.5 m x 1 m x 1 m
Specifications:
Modular structure
Finish: Galvanized and Powder Coated
Color: Dark
Approximate section size (H x L x W): 1.5 m x 1 m x 1 m
Spiral hinged corners for flat packing
Frame material: Galvanized wire
Wire diameter: 4-5 mm
Mesh opening: 10 × 10 cm
Geotextile liner: 2 mm heavy-duty non-woven polypropylene
Approximate overall size (H x L x W): 1.5 m × 5 m × 1 m
Modular Gabion Basket Barrier 1 m x 1 m x 1 m
Specifications:
Modular structure
Finish: Galvanized and Powder Coated
Color: Dark
Approximate section size (H x L x W): 1 m x 1 m x 1 m
Spiral hinged corners for flat packing
Frame material: Galvanized wire
Wire diameter: 4-5 mm
Mesh opening: 10 × 10 cm
Geotextile liner: 2 mm heavy-duty non-woven polypropylene
Approximate overall size (H x L x W): 1 m × 5 m × 1 m
