ASTM A392-06 Compliant Temporary Chain Link Fence Panels for Construction, Schools, and Large Events

Frishine supplies high quality temporary chain link fencing ideal for various perimeters safety. Chain link temp fence panel is a cost-effective and flexible fencing material with simple installation, perfect for time and budget-sensitive projects.
Chain link mesh fabrics are highly corrosion resistant durable materials, treated with galvanized zinc coating, powder coated, and galfan coated options.

Chain link temporary fence panels mainly work by two ways:

• Chain Link Fence Panels with Security Gates and Panel Stand;
• Chain Link Partition Panels with Security Gates and Panel Stand.

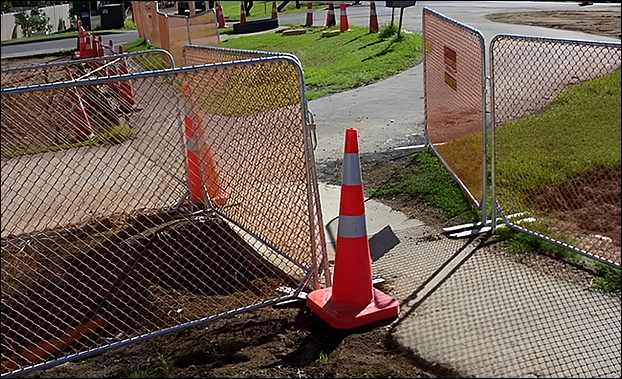

Portable Chain Link Fence Panels

Our temporary chain link fencing panels can be installed on diverse terrains such as sand, soil, asphalt, and concrete, a perfect choice for any event or site condition. Chain link fence panels are made of galvanized chain link mesh framed with tubes, powder coating and aluminized coating available for additional corrosion protection.

Quality Assurance

All our temporary chain link fencing products are manufactured according to ASTM A392-06 standards. This certification attests to the superior resistance our fences offer against exposure and corrosion. Heavy zinc coating enhances durability, ensuring long-lasting performance and security.

Features

• Our chain link fencing can be supplied in various materials and finishes.
• Portable fence panels can be quickly installed, maintained, and removed.
• Customized sizese: Available in options of 4′, 6′, and 8′ heights,  with a 1 5/8″ line post, meeting specific security fencing needs.

Common Export Specifications

1)1000 feet of 6-foot-tall temporary chain link panels and posts for the Albuquerque, NM area.

2)Black coated chain link temporary fence panels, 8 feet tall and up to 10 feet wide, total 130 linear feet.

3)Temporary chain link fence panels with 1 3/8″ and 1 5/8″ tubing, 1200 panels 6 ft by 12 ft, shipping to Seattle, WA, USA.

4)Temporary fence panels available in 6ftx10ft and 8×10 sizes, featuring welded wire and chain link with bases, gate hardware, and clamps.

5)Chain Link Temporary Fence Panels with Braces:

• 6’H x 8’W Panel, 11-1/2 gauge chain link with 1 vertical and 1 horizontal brace.
• 6’H x 10’W Panel, 11-1/2 gauge chain link with 1 vertical and 1 horizontal brace, includes walk gate.
• 6’H x 8’W Panel, 11-1/2 gauge chain link, no braces.

6)Temporary Fencing Chain Link Type of Galvanized Mild Steel:

• Total Coverage: Approximately 1800ft, including 3 gates with all necessary hardware for assembly and installation.
• Areas to Enclose:
  RHEN II (65PLT) West: 370ft with a gate.
  RHEN II (65PLT) East: 540ft with a gate.
  RHEN III (69PLT): 870ft with a gate.
• Specifications:
  Frame and Middle Pipe Diameter: 25mm.
  Chain Link Mesh Size: 100x100mm.
  Wire Diameter: 4mm.
  Surface Treatment: Galvanized.
  Panel Width: 3.65m.
  Height: 1800mm.

7)Temporary Chain Link Mesh Construction Fencing for South Africa Project

Dimensions and Structure

• Size: 10 feet in length and 6 feet 7 inches in height.
  Mesh Hole Size: 2 inches by 2 inches.
  Wire Diameter: 0.09 inches.
  Post Specifications: Posts 1.89 inches in diameter with a wall thickness of 0.1 inches and a height of 6 feet 7 inches.
• Central and Ledger Components
  Diameter of 1.26 inches and a wall thickness of 0.08 inches.

Base and Installation

• Base Specifications: The base is sized at 1.89 inches in diameter, 2 feet 11 inches in length, and 1 foot 4 inches in width.
• Foot Coupling Tube: 1.26 inches in diameter, with a wall thickness of 0.08 inches and a height of 5.91 inches.

Finishing and Coating

• Zinc Coating: The components, including the foot, posts, beam post, central ledger, and ledgers, are pre-hot dipped with a zinc coating thickness of 0.59 mils (15μm), while the chain link mesh features a zinc coating thickness of 0.335 mils (8.5μm), with enhanced corrosion resistance.

Packaging and Weight

• Packaging: Each set is carefully packaged on a pallet and secured with stretch film, ensuring safe transportation and storage.
• Weight: Each fencing set weighs 97 pounds, reflecting its robust construction and durability.

Parts and Accessories

• The fencing material includes chain link mesh, posts, central beam post, central ledger, plastic caps, U-clips, connectors/clamps, bolts and nuts, and all necessary components for assembly and installation.
